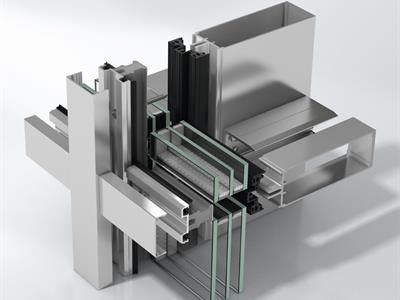

Schüco TTC 50 HI

  • {{image.title}}
  • Transom-transom facade with 50 mm view width
  • Excellent thermal insulation with Uf values up to 1.7 W / (m²K)
  • High glass loads up to 630 kg possible
  • Air permeability class A4, watertightness class RE1350 (EN 13830:2015)
  • Appealing form for flush-mounted transoms with sharp-edged cross-sections
  • Sophisticated drainage system with transom-transom technology
  • Integration of Schüco countersunk or parallel opening windows (Schüco AWS 114)
  • Large window dimensions in standard and RWA via Schüco TipTronic
  • Glass thicknesses up to 64 mm

Schüco TTC 50 HI - high insulation values and easy processing

Energy-efficient construction and efficient production combined with simple assembly. Stable T-connectors and sealing components without sealant secure the post and transom joints and ensure continuous function.

Special features

The Schüco TTC 50 HI transom/transom facade system combines the advantages of the Schüco FWS 50 facade system with those of the Schüco AOC 50 superstructure by means of an overlapping sealing principle.

System features

ProduktFacades and Skylights
Pitch roof construktionen
Building extension
WerkstoffAlumínium
EnergieThermally insulated (1,3 ≤ Uf ≤ 2,0)
SicherheitsmerkmaleBurglar resistant RC2
Burglar resistant RC3
FunktionRaised sound insulation
Fall protection
Gestaltung/DesignStandard
Multi Countour
OberflächeAlu crude (refinementable)
Schallschutzincreased sound insulation 38 - 45 dB
increased sound insulation more than 45 dB
Standard up to 38 dB
Key figuresThermal insulation Uf in W/m²K von: 1,7
Thermal insulation Uf in W/m²K bis: 2
Schalldämmung Rw,p in dB von: 37
Schalldämmung Rw,p in dB bis: 48
Einbruchhemmung RC von: RC2
Einbruchhemmung RC bis: RC3
Pulver: all Variations
Eloxal: all Variations
Nasslack: all Variations
Edelstahllook: all Variations
Luftdichtheit: AE
Schlagregendichtheit: RE 1200
Stoßfestigkeit: I5/E5
