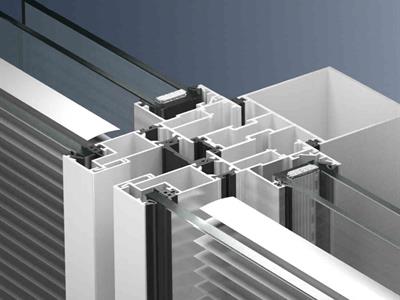

Schüco SFC 85, Type C

  • ​​an all-glass façade or with glass frames
  • standard insulating glazing
  • Inside face width 85 mm
  • Opening units fully integrated in the load-bearing structure, also in conjunction with concealed motor drive
  • efficient installation of fixed lights (up to maximum 480kg)

Schüco SFC 85 (Stick Frame Construction) - an all-glass façade or with glass frames

​The Schüco Façade SFC 85 (Stick Frame Construction) is a type of structural glazing with fixed fields flush-fitted in the façade and opening units that cannot be identified as insert units from the outside or the inside. The insert units completely integrated in the load-bearing structure can be implemented in particularly large fixed field or vent formats with heavy unit weights. Schüco SFC 85 provides maximum transparency and an elegant façade design with the same face width for fixed fields and vents. ​



System features

ProduktFacades and Skylights
WerkstoffAlumínium
EnergieThermally insulated (Uf ≤ 2,0)
ProduktTypTransom and mullion
PV integrated façade
SicherheitsmerkmaleBurglar resistant RC2
FunktionFall protection
Gestaltung/DesignStandard
Multi Countour
OberflächeAlu crude (refinementable)
Schallschutzincreased sound insulation 38 - 45 dB
increased sound insulation more than 45 dB
Key figuresThermal insulation Uf in W/m²K von: 3,4
Thermal insulation Uf in W/m²K bis: 4,9
Schalldämmung Rw,p in dB von: 36,0
Schalldämmung Rw,p in dB bis: 43,0
Pulver: all Variations
Eloxal: all Variations
Nasslack: all Variations
Edelstahllook: all Variations
Luftdichtheit: AE
Schlagregendichtheit: RE1200
Widerstand gegen Windlast: +/-1,8 kN/m2
Stoßfestigkeit: I5/E5
Dauerfunktion: 3
mechan. Festigkeit: 4
