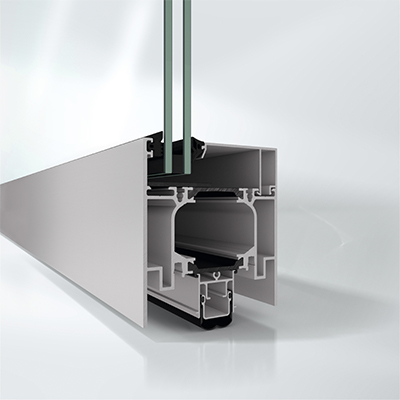

Schüco FireStop ADS 90 FR 30

Highly professional and affordable fire protection system for 30 minutes
Completely tested door-wall range, including fittings
Large, clear passage dimensions of 1.5 m x 3.1 m approved
Construction depth 90 mm, narrow profile views of 127 mm
Post-assembly work possible anytime with stable, folding 3-chamber profile geometry
High stability – wall anchorage directly through the band parts
New fastening system for rapid tool-less assembly
System compatibility planned for 60‘ and 90‘ applications (EI60 and EI90)

Schüco FireStop ADS 90 FR 30 for 30 minutes of fire resistance

Schüco FireStop ADS 90 FR 30 fulfils all requirements of fire resistance classes EI30 and EW30. It has an innovative, folding 3-chamber profile geometry with a construction depth of 90 mm. Post-assembly installation of cables to electrify doors or to change locks, e.g. single point- to multipoint locks, is easy to do thanks to the folding profile.

A decisive added value to the new system is economic efficiency: The door elements exhibit their advantage through a high degree of prefabrication in the workshop and efficient assembly. This guarantees simple, rapid, reliable on-site installation.

Special feature

Door variants were tested for the first time without the installation of locks (Note country-specific approval!). The advantage of use without a lock is obvious. Doors are always freely passable – a feature that is certain to be especially appreciated by users of highly frequented interior doors. Also, use in conjunction with rotary door drives is possible. The use of E-openers is eliminated in this case.

System features

System	Doors Security systems Building extension
Material	Alumínium
Energy	Thermally insulated (Uf ≤ 2,0)
Types	Fixed glazing Front door inside Front door outside Panic front door inside Object door openout Supply air
Security	Burglar resistant RC2 Burglar resistant RC3 Fire protection Protection class
Features	Motorisable Controllable Comfort control Radio system Emergency Exit Control Emergency Exit Lock Panic function Self-closing function
Control	Manuell switchable Electric switchable
Design	Standard
Surface	Alu crude (refinementable)
Sound insulation	increased sound insulation 38 - 45 dB
Key figures	Burglar resistance RC: from RC2 to RC3 Powder: all Variations Eloxal: all Variations Wet coating: all Variations Stainless steel look: all Variations Fire protection class: EI30 Smoke protection class: Sm

Where is there CE marking, where is there ÜA marking? as of 06.2018 | This FAQ post is for Austria.

Exterior window element with surrounding fixed fields
For openable elements, a CE marking can be created.                                                     CE or ÜA          CE from 01.10.2019 "a must"
If an openable element has been tested in an associated supporting structure,
(same glass, same construction) and left or right or up or down a fixed field is
connected, then it is a portal → CE                                                                                   CE or ÜA          CE from 01.10.2019 "a must"
If further fixed elements are installed, then these are to be marked ÜA .                          ÜA

Exterior window element standing alone
Marked with either CE or ÜA, where: CE as a "can" rule CE or ÜA CE from 01.10.2019 "a must"

Exterior door element standing alone
Marked with either CE or ÜA, where: CE as a "can" rule CE or ÜA CE from 01.10.2019 "a must"

Exterior door element with Fixed Panel (as Portal)
Schüco ADS 80 FR60: see order catalogue chapter "outdoor application"                     CE or ÜA          CE from 01.10.2019 "a must"
Schüco ADS 80 FR30: Permitted based on the information in Schüco ADS 80 FR60      CE or ÜA          CE from 01.10.2019 "a must"
If further fixed elements are installed, then these are to be marked ÜA .                          ÜA

Façade element with insert element
If an external (door) element has been tested together with the façade, then CE or ÜA CE from 01.10.2019 "a must"
the supporting structure is an essential component. Door CE ("can"), Façade CE

Additional information on façades
A special feature in AT is that there are no complete fire protection façades, but usually only sections.
This means that in these cases a ÜA marking is required.
Open elements with a closed system cannot be checked and a CE marking is therefore inadmissible (e.g. balconies).
