Schüco FireStop ADS 76.NI SP

  • Deliverable as of early 2018
  • Stable smoke protection construction for large, stable door elements
  • Large light passage dimension1.5 m x 3.1 m approved
  • Completely tested door-wall program, including fittings
  • Construction depth 76 mm, narrow profile views of 127 mm
  • Stable, folding one-chamber profile geometry in blind and window frames
  • Post-assembly work possible
  • High stability – wall anchoring directly through the band parts
  • New fastening system for rapid tool-less assembly
  • System compatibility with Schüco Firestop 30/60/90 applications

Schüco FireStop ADS 76.NI SP (non-insulated smoke protection) for smoke protection door elements

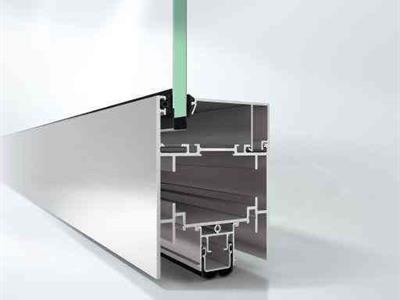

Schüco FireStop ADS 76.NI SP is an innovative, folding one-chamber profile system with a construction depth of 76 mm.
The non-insulated smoke protection system offers special, variable solutions for indoor use in wall and door construction, especially for multifunction doors. Post-assembly installation of cables to electrify doors or to change locks, e.g. from single point- to multipoint locks, is easy to do, thanks to the folding profile. A decisive added value to the new system is economic efficiency: The door elements exhibit their advantage through a high degree of prefabrication in the workshop and efficient assembly. This guarantees simple, rapid, reliable on-site installation.

Special feature

As with fire protection, door variants were also tested for the first time without the use of locks (Note country-specific approval!). The advantage of use without a lock is obvious. Doors are always passable – a feature that is certain to be especially appreciated by users of highly frequented interior doors.  Also, use in conjunction with rotary door drives is possible. The use of E-openers is eliminated in this case.​

System features

Security systems
Building extension
EnergyNot insulated ( Uf ≥ 2,0)
TypesFixed glazing
Supply air
SecurityBurglar resistant RC2
Burglar resistant RC3
Fire protection
Protection class
Comfort control
Radio system
Emergency Exit Control
Emergency Exit Lock
Panic function
Self-closing function
ControlManuell switchable
Electric switchable
SurfaceAlu crude (refinementable)
Sound insulationincreased sound insulation 38 - 45 dB
Key figuresBurglar resistance RC: from RC2 to RC3
Powder: all Variations
Eloxal: all Variations
Wet coating: all Variations
Stainless steel look: all Variations
Smoke protection class: Sm

Exterior window element with surrounding fixed fields
For openable elements, a CE marking can be created.                                                     CE or ÜA          CE from 01.10.2019 "a must"
If an openable element has been tested in an associated supporting structure,
(same glass, same construction) and left or right or up or down a fixed field is
connected, then it is a portal → CE                                                                                   CE or ÜA          CE from 01.10.2019 "a must"
If further fixed elements are installed, then these are to be marked ÜA .                          ÜA

Exterior window element standing alone
Marked with either CE or ÜA, where: CE as a "can" rule                                                   CE or ÜA          CE from 01.10.2019 "a must"

Exterior door element standing alone
Marked with either CE or ÜA, where: CE as a "can" rule                                                   CE or ÜA          CE from 01.10.2019 "a must"

Exterior door element with Fixed Panel (as Portal)
Schüco ADS 80 FR60: see order catalogue chapter "outdoor application"                      CE or ÜA          CE from 01.10.2019 "a must"
Schüco ADS 80 FR30: Permitted based on the information in Schüco ADS 80 FR60      CE or ÜA          CE from 01.10.2019 "a must"
If further fixed elements are installed, then these are to be marked ÜA .                          ÜA

Façade element with insert element
If an external (door) element has been tested together with the façade, then                  CE or ÜA          CE from 01.10.2019 "a must"
the supporting structure is an essential component. Door CE ("can"), Façade CE

Additional information on façades
A special feature in AT is that there are no complete fire protection façades, but usually only sections.
This means that in these cases a ÜA marking is required.
Open elements with a closed system cannot be checked and a CE marking is therefore inadmissible (e.g. balconies).
