Schüco SI 82

  • {{image.title}}
  • Profile construction depth of 82 mm
  • Narrow face width of 120 mm underlines the slim optics and ensures maximum light incidence
  • Increased construction depth for more safety and protection against intruders
  • Can be supplied in three optical panel variants: "classic" (recessed), "Rondo" (quarter recessed) and "Cava" (half recessed)
  • 6-chamber profile system with optimal insulation properties
  • Three gasket levels for optimal protection against wind, rain and sound
  • Silver-gray gaskets for white profiles for subtle optics; black gaskets for polished profiles
  • Depending on the profile combination and glazing Uw values can be achieved up to 0.74 W/(m²K)
  • Colorful profile designs thanks to a wide choice of plain colors and wood decors as well as aluminium cover caps.

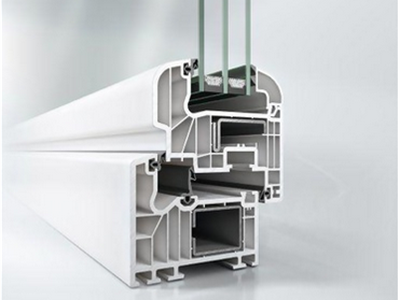

The Schüco SI 82 window systems have three levels of gaskets and conventional steel reinforcement. The 6-chamber profile system with 82mm construction depth offers excellent thermal insulation properties while maintaining the face widths narrow.​



System features

SystemWindows
Window door
Ventilation systeme
MaterialPVC
EnergyHighly thermally insulated (1,0 ≤ Uf ≤ 1,3)
TypesCombined pivoting hopper window
Toplights
Fixed glazing
Double vent window
PASK-window door
Renovation window
Supply air
SecurityBurglar resistant RC2
Supply air elements/slipstream
FeaturesMotorisable
Raised sound insulation
ControlManuell switchable
Electric switchable
DesignCava
Classic
Rondo
SurfaceSchüco TopAlu
Decorative surface
AutomotiveFinish
PVC white (foliation)
Sound insulationincreased sound insulation 38 - 45 dB
increased sound insulation more than 45 dB
Standard up to 38 dB
Key figuresThermal insulation Uf in W/m²K: from 1,0 to 1,2
Thermal insulation Uw in W/m²K: from 0,9 to 1,2
Sound insulation Rᵥᵥ,ₚ in dB: from 34,0 to 48,0
Burglar resistance RC: from - to RC2
Standard face width in mm: 120,0
Construction depth in mm: 82,0

There are two different wall thicknesses:

RAL Class A: Wall thickness 2.9 mm +/- 0.2 mm

RAL Class B: Wall thickness 2.7 mm +/- 0.2 mm



Schüco SI 82 is delivered exclusively in RAL B.

Schüco CT 70 is partially available in RAL A and RAL B.

Schüco Living is manufactured exclusively in RAL B.



Basically no quality differences are measurable, all profiles are RAL tested.

For more information, see the Schüco KS system overview. Profiles marked with "Euroline", correspond to RAL B.

​Es werden zwei verschiedene Wanddicken unterschieden:
RAL Klasse A: Wandungsstärke 2,9 mm +/- 0,2 mm
RAL Klasse B: Wandungsstärke 2,7 mm +/- 0,2 mm

Schüco SI 82 wird ausschließlich in RAL B geliefert.
Schüco CT 70 ist teilweise in RAL A und RAL B lieferbar.
Schüco Living wird ausschließlich in RAL B gefertigt.

Grundsätzlich sind keine Qualitätsunterschiede messbar, alle Profile sind RAL geprüft.
Nähere Information finden Sie in der Schüco KS Systemübersicht, Profile die mit "Euroline" gekennzeichnet sind, entsprechen RAL B.
