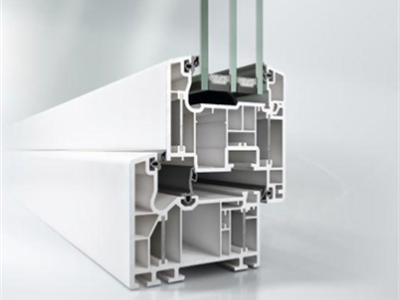

Schüco Alu Inside

  • ​Steel and insulation foam free frame construction
  • 82 mm for maximum thermal insulation as 7-chamber profile construction
  • Highly innovative chamber geometry with Uw values up to 0.66 W/(m²K)
  • Large space chambers for additional insulation
  • Triple glazing with glass thickness up to 52 mm possible
  • Profile integrated aluminium reinforcement for high static requirements
  • Narrow face width of 120 mm ensures best possible light incidence
  • Excellent soundproofing values, security and burglary protection
  • Leaf geometry in recessed leaf optics
  • Silver-gray gasket for white profiles – black gaskets for foiled profiles
  • Large color selection: plain, wood decors, automotive finish and aluminium cover cap
  • Fully recyclable

Patented System

The PVC system Schüco Aluminum Inside with 3 gasket levels and patented aluminum composite technology is based on a 7 chamber design. With this highly thermal insulating system passive and low-energy house standard windows can be implemented cost-effectively of the best standard in narrow face widths thanks to industrial production.

At the same time, high system security is ensured by an extensive range of accessories.​



System features

SystemWindows
Window door
Ventilation systeme
MaterialPVC
TypesCombined pivoting hopper window
Toplights
Fixed glazing
Double vent window
Renovation window
Supply air
SecurityBurglar resistant RC2
Supply air elements/slipstream
FeaturesMotorisable
Raised sound insulation
ControlManuell switchable
Electric switchable
DesignClassic
SurfaceDecorative surface
AutomotiveFinish
Sound insulationincreased sound insulation 38 - 45 dB
increased sound insulation more than 45 dB
Standard up to 38 dB
Key figuresThermal insulation Uf in W/m²K: from 0,7 to 0,9
Thermal insulation Uw in W/m²K: from 0,7 to 1,2
Sound insulation Rᵥᵥ,ₚ in dB: from 34,0 to 46,0
Burglar resistance RC: from - to RC2
Standard face width in mm: 120,0
Construction depth in mm: 82,0
