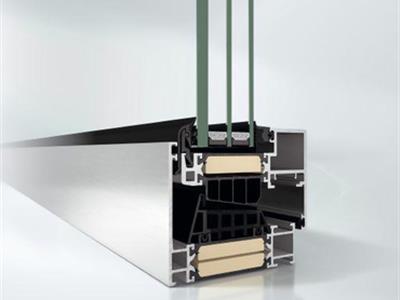

Schüco AWS 90 BS.SI+

  • {{image.title}}
  • ​​Uf values from 0.71 W/(m²K) at 90 mm construction depth: highest thermal insulation to passive house standard
  • Insulation zone with foam-insulating bars optimized
  • Large glass thickness ranges can be used
  • Schüco AWS 90 BS.SI+ with concealed leaf and opaque look: elegant face widths from 77 mm
  • Block window now also in top-hung design
  • Concealed fitting system Schüco AvanTec SimplySmart
  • Burglary protection rating in RC 1 N, RC 2 and RC 3 can be executed
  • Block series without glass bonding on passive house standard can be executed





System features

SystemWindows
Window door
Ventilation systeme
MaterialAlumínium
EnergyHighly thermally insulated (1,0 ≤ Uf ≤ 1,3)
TypesTurn windows
Combined pivoting hopper window
Toplights
Fixed glazing
Double vent window
PASK-window door
Renovation window
Supply air
SecurityBurglar resistant RC2
Burglar resistant RC3
Protection class SK1
Protection class SK2
Protection class SK3
Protection class SK4
Supply air elements/slipstream
FeaturesSchüco TipTronic
Motorisable
Schüco WindowControlSystem WCS
Controllable
Comfort control
Radio system
Decentralized ventilation
Raised sound insulation
Fall protection
ControlManuell switchable
Electric switchable
VOC control
CO2 control
Wet control
Wind control
Approximation control
Switch rail control
Magnetic switch control
DesignStandard
Block system
Multi Countour
SurfaceAlu crude (refinementable)
Sound insulationincreased sound insulation 38 - 45 dB
increased sound insulation more than 45 dB
Key figuresBurglar resistance RC: from RC1 to RC2
Standard face width in mm: 81,0
Construction depth in mm: 90,0
Powder: all Variations
Eloxal: all Variations
Wet coating: all Variations
Stainless steel look: all Variations
Airtightness: 4
Driving rain proofness: 9a
Resistance against wind load: C5/B5
Continuous operation: 3
Corrosion protection class: 4
Operation power: 1
Mechanic strength: 4

We recommend the following tools
For rolling in the stop seal:  Schüco sealing roller Item no. 293565
For rolling in the glazing seal Schüco Flat ribbon-rollup Item no. 282772*

*) Tool made from Schüco TipTronic SimplySmart
