Schüco Fenster AWS 75 PD.SI

  • Note: This system is deliverable as of 01/2019
  • Panorama design – outstanding views
  • Large glass surfaces with panorama design for your windows
  • Slender, inner and outer viewing widths in a block window look
  • Inner flush mounting with narrow circumferential joints
  • Use as single window, as extended windows and in Schüco facades
  • Narrow window system for the Schüco FWS 35 PD facade
  • Automation possible with Schüco TipTronic SimplySmart
  • Rosette-less handle connection
  • Lettering possible in moulding by window manufacturers
  • Straightforward Schüco SimplySmart workmanship
  • Non-visible drainage

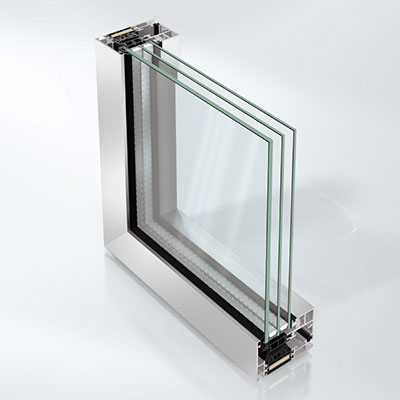

Schüco AWS 75 PD.SI windows - panorama design windows

The new Schüco AWS 75 PD.SI panorama design window for the first time allows Schüco to provide an opening element with currently unsurpassed, narrow inner and outer view widths that fulfil high architectural expectations.
The Schüco AWS 75 PD.SI is flush-mounted, the seals are barely visible; it provides the greatest transparency and makes Aa uniform framed picture possible and thus harmonized view-widths in fixed sections and in opening elements.

Feature

A picture book-like design emerges when combined with the Schüco FWS 35 PD façade.
The system also offers genuine window construction in the form of all known possibilities: corner post, static post, symmetric-, asymmetric views and all-glass corner solutions can become reality. The required glass tolerances are within standard specifications.​

System features

ProduktWindows
Ventilation systeme
WerkstoffAlumínium
EnergieHighly thermally insulated (1,0 ≤ Uf ≤ 1,3)
ProduktTypCombined pivoting hopper window
Toplights
Fixed glazing
Renovation window
Supply air
SicherheitsmerkmaleProtection class SK1
Protection class SK2
Protection class SK3
Protection class SK4
Supply air elements/slipstream
FunktionSchüco TipTronic
Motorisable
Schüco WindowControlSystem WCS
Controllable
Comfort control
Radio system
Decentralized ventilation
Raised sound insulation
Fall protection
SteuerungManuell switchable
Electric switchable
VOC control
CO2 control
Wet control
Wind control
Approximation control
Switch rail control
Magnetic switch control
Gestaltung/DesignStandard
Block system
Multi Countour
OberflächeAlu crude (refinementable)
Schallschutzincreased sound insulation 38 - 45 dB
increased sound insulation more than 45 dB
Standard up to 38 dB
Key figuresPulver: all Variations
Eloxal: all Variations
Nasslack: all Variations
Edelstahllook: all Variations
Luftdichtheit: 4
Schlagregendichtheit: 900
Widerstand gegen Windlast: C5/B5
Stoßfestigkeit: 5
Dauerfunktion: 2
Korrosionsschutzklasse: 4
Bedienungskräfte: 2
mechan. Festigkeit: 4
