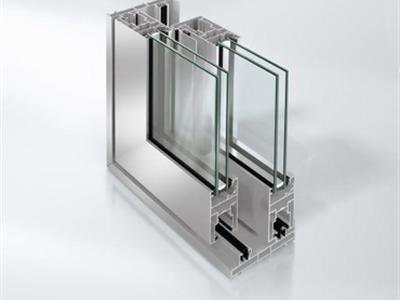

Schüco ASS 50.NI

  • Sliding or lift &slide elements with minimal running noise
  • 50 mm deep leaf profiles carry up to 150 kg leaf weight
  • A flat blind frame profile offers an attractive surrounding frame
  • Usable glass thickness ranges of 8 mm to 32 mm
  • Burglary protection rating class RC 2
  • Version with 2 slide rails
  • Total depth 120mm

Uninsulated sliding or lift &slide system for large surface glazing

 The Schüco sliding and lift & slide system ASS 50.NI is the ideal solution for indoor areas or regions where no thermal insulation is required. The uninsulated aluminum construction with narrow profile face widths of just 89 mm is suitable for large glass surfaces with maximum light transmission - with minimum space requirements.
Shapely fittings and handle combinations are available for both variants.

Note

This system can also be supplied with thermal insulation.​

System features

ProduktSliding systems
WerkstoffAlumínium
EnergieNot insulated ( Uf ≥ 2,0)
ProduktTypPanic front door outside
PASK Window door
Lift and slide system
SicherheitsmerkmaleBurglar resistant RC2
FunktionEasy-access
Bullet resistance
Burglar inhibition
Gestaltung/DesignStandard
OberflächeAlu crude (refinementable)
Schallschutzincreased sound insulation 38 - 45 dB
Key figuresEinbruchhemmung RC von: RC1
Einbruchhemmung RC bis: RC2
Pulver: all Variations
Eloxal: all Variations
Nasslack: all Variations
Edelstahllook: all Variations
Dauerfunktion: 2
Bedienungskräfte: 1
mechan. Festigkeit: 4

​1) Firstly, there must be a distinction between the two system types, sliding and lift-sliding. The fittings of the two versions are different and can therefore be processed differently by the producer in special cases.


2) The following rule must be complied with:

Max. height = 2.5*width for manually movable systems (therefore: min. width = height/2.5)

Max. height = 2.0*width for motorised movable systems (therefore: min. width = height/2.0)


3) Special approvals will be issued on request for special projects (based on CAD documents).
