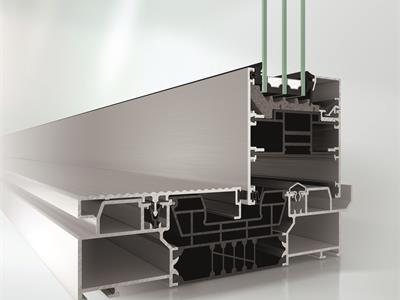

Schüco ASE 80.HI

  • Note: Deliverable as of January 2018
  • Schüco ASE 80.HI sets new standards in sliding systems
  • Maximum transparency via narrow casement viewing widths
  • Uf values up to 1.7 W/(m²K) for sliding and lifting-sliding systems
  • Casement weights up to 350 kg
  • Patented profile bonding reduces bimetal effect to a minimum
  • At grade threshold and narrower centre cuff (interlock)
  • Easy-to-use via Schüco SmartStop / Schüco SmartClose
  • Currently, opening types 2A/1 and 2A are deliverable as of May 2017
  • 14 further two- and three rail opening types deliverable as of January 2018

Highly insulated sliding and lifting-sliding system

The Schüco ASE 80.HI sliding system offers the opportunity to implement different thermal insulation variants via its modular design. Within the construction depth of 80 mm, medium to high insulation can thus be realised via various insulation zones.
In metal construction, a combinable fittings system for sliding as well as lifting-sliding applications results in reduced complexity and warehousing. The central fittings groove (symmetrical casement design) guarantees optimal weight distribution and thus weights up to 350 kg.
All casement profiles can be assembled without a roll-out process. The result is a considerably reduced bimetal effect.
The Schüco ASE 80.HI sliding system sets new standards in comfort and design.

Feature

With the aid of the new Schüco SmartStop and Schüco SmartClose comfort technology, the Schüco ASE 80.HI ensures simple, secure operation of movable casements.

System features

ProduktSliding systems
WerkstoffAlumínium
EnergieThermally insulated (1,3 ≤ Uf ≤ 2,0)
ProduktTypLift and slide system
SicherheitsmerkmaleBurglar resistant RC2
FunktionSchüco WindowControlSystem WCS
Controllable
Comfort control
Radio system
Decentralized ventilation
Easy-access
Schüco Fingerprint
Schüco Code Keyboard
Schüco Card-reader
SteuerungManuell switchable
Electric switchable
VOC control
CO2 control
Wet control
Wind control
Switch rail control
Gestaltung/DesignStandard
Schallschutzincreased sound insulation more than 45 dB
Key figuresThermal insulation Uf in W/m²K bis: 1,7
Einbruchhemmung RC von: RC1
Einbruchhemmung RC bis: RC2
Pulver: Variations limited
Eloxal: Variations limited
Nasslack: Variations limited
Edelstahllook: Variations limited
Bedienungskräfte: 2
