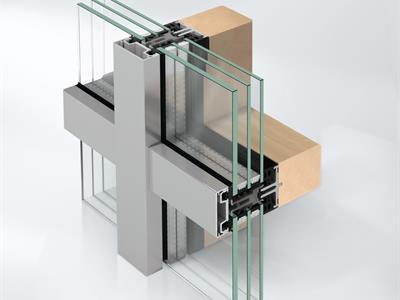

Schüco AOC 75 TI

Add-on construction in 75 mm system width on wood for vertical façades and glass roofs
Highest thermal insulation up to Uf = 0.67 W/(m²K) including screw influence
Watertightness up to 2.550 Pa
Insulator with reflective surfaces to minimise energy loss through thermal radiation
Only one insulator for vertical façades and skylight roof construction
KS clips for optimum screw guidance even with high glass thicknesses, especially triple glazing
Special base profile with positioning aid (guide) available
Approved wood types:
- Glued laminated wood made from coniferous wood or oak
- Laminated veneer timber made from coniferous wood
- Solid wood made from oak
Wood T-connector - RICON system approved
GI-Technology and Flex-Injector for secure sealing of transom connections
Vertical façades and skylights with roof pitches of up to 2°
Segmented seals for polygonal façades between -10° and +20°
Glass weights up to 1.100 kg
Glass thicknesses up to max. 70 mm
Burglar resistance RC 2 / RC 3

Schüco AOC 75 add-on construction on wood (TI) for façade and skylight roof with excellent performance characteristics

Schüco AOC 75 add-on construction on timber (TI) combines energy-efficient construction with efficient fabrication and installation. Schüco AOC add-on constructions on timber are suitable for vertical façades and glass roofs for maximum transparency.

Vertical façades and skylights can be constructed with a roof pitch of up to 2 ̊ without butyl tape. New system components enable a simple and secure design for large pane dimensions with triple glazing, including load transfer and screw guidance.

The burglar resistance in the system on timber substructures is tested up to RC3.

Special feature

Integration of insert units:
- Schüco AWS 114 Top-hung or parallel opening window
- Schüco AWS Schüco AWS 75 PD.SI / Schüco AWS 75 BS.SI DK window
- Schüco AD UP 75 Door
- Schüco AW RO 50 Roof window

System features

System	Facades and Skylights Add-on construction Pitch roof construktionen
Material	Alumínium
Energy	Passiv house suitable (0,8 ≤ Uf ≤ 1,0)
Types	Added construction Wintergarden
Security	Burglar resistant RC2
Features	Fall protection
Design	Standard Multi Countour Wood effekt
Surface	Alu crude (refinementable)
Sound insulation	increased sound insulation 38 - 45 dB increased sound insulation more than 45 dB Standard up to 38 dB
Key figures	Thermal insulation Uf in W/m²K to: 0,67 Burglar resistance RC: from RC2 to RC3 Standard face width in mm: 75,0 Powder: all Variations Eloxal: all Variations Wet coating: all Variations Stainless steel look: Possible Airtightness: AE Driving rain proofness: RE 2550
