Schüco AOC 60 SG TI

  • ​Add-on construction in 60 mm system width on timber for vertical façades and glass roofs
  • SG solution with high thermal insulation
  • Double and triple insulation glass easy to use
  • Three drainage levels for maximum design flexibility
  • Integration of Schüco AWS 114 as projected top-hung or parallel vent windows
  • Large surface automated window solutions for standard and RWA
  • Glass weights up to 810 kg
  • Glass thickness ranges of 32 mm to 64 mm can be used
  • Special basic profiles with positioning support for timber fabricators

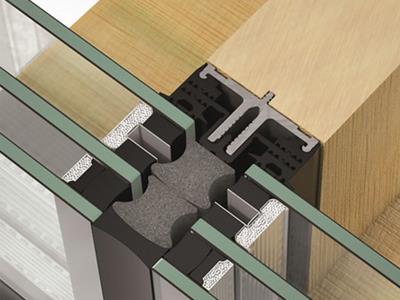

The add-on construction AOC 60 on timber (TI) with best insulation values with the simplest processing

The add-on construction AOC 60 on timber (TI) combines this energy-efficient construction with efficient fabrication and assembly.

The system allows designing of façades in Semi Structural Glazing look.

​The sealing components without sealant application are used in mullion and transom push-fit for efficient and safe installation.


System features

ProduktFacades and Skylights
Add-on construction
Pitch roof construktionen
ProduktTypAdded construction
Glittering glass façade
FunktionFall protection
Multi Countour
Wood effekt
Structural Glazing
Semi Structural Glazing
OberflächeAlu crude (refinementable)
Schallschutzincreased sound insulation 38 - 45 dB
increased sound insulation more than 45 dB
Standard up to 38 dB
Key figuresThermal insulation Uf in W/m²K von: -1,0
Thermal insulation Uf in W/m²K bis: -1,0
Schalldämmung Rw,p in dB von: -1,0
Schalldämmung Rw,p in dB bis: -1,0
Pulver: all Variations
Eloxal: all Variations
Nasslack: all Variations
Edelstahllook: Possible
Luftdichtheit: AE 900
Schlagregendichtheit: RE 1200
Stoßfestigkeit: I5/E5
