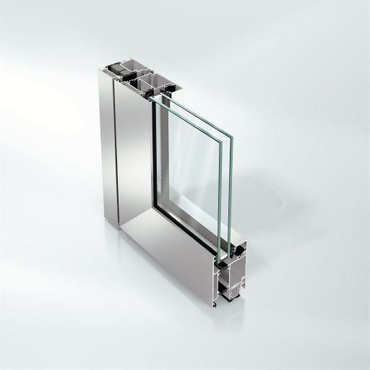

Schüco ADS 70 HD

  • Narrow face width from 147 mm
  • Flat threshold solutions for barrier-free construction and adjustable foot points possible
  • Particularly robust and long-lasting
  • Numerous variants: 1 / 2 leaf, inward and outward opening, anti-panic doors
  • Suitable for use in high-traffic entrances and exits
  • Burglary protection rating up to class RC3
  • Comfortable clearance heights up to 3000 mm
  • Maximum leaf weight: 200 kg
  • Door leaf can be built with leaf overlapping infill
  • Can be integrated into Schüco façade systems
  • Can be integrated into building automation

The Schüco Door ADS 70 HD (Heavy Duty) combines outstanding thermal insulation and provides freedom of design and a number of variants.

The Schüco aluminum door systems offer the highest standard of performance characteristics and flexibility.

  • Automatic door sealing
  • Barrier-free access solutions
  • Top hinges, barrel hinges and concealed hinges can be used
  • Door hinges with 1,000,000 cycles tested for endurance in accordance with EN 12400
  • Panic fittings
  • Escape door security
  • Double-leaf full panic door in RC2 with automatic lock Schüco InterLock (multi point locking system, optional A-opener)


Particularly in public buildings, Schüco door systems offer stability with higher frequency of utilization and large opening widths.

System features

ProduktDoors
WerkstoffAlumínium
EnergieThermally insulated (1,3 ≤ Uf ≤ 2,0)
ProduktTypFront door inside
Front door outside
Panic front door inside
Object door openout
Supply air
SicherheitsmerkmaleBurglar resistant RC2
Burglar resistant RC3
Emergency door suitable
Supply air elements/slipstream
Outbreak safety
FunktionMotorisable
Controllable
Comfort control
Radio system
Raised sound insulation
Easy-access
Emergency Exit Control
Emergency Exit Lock
Panic function
Self-closing function
Door-opening function (Swing door drive)
Schüco Door Control System DCS
Access control
Schüco Fingerprint
Schüco Code Keyboard
Schüco Card-reader
Schüco E-opener
Schüco A-opener
Schüco InterLock
Schüco SafeMatic
Gestaltung/DesignStandard
Multi Countour
OberflächeAlu crude (refinementable)
Schallschutzincreased sound insulation 38 - 45 dB
increased sound insulation more than 45 dB
Key figuresThermal insulation Uf in W/m²K von: 1,7
Thermal insulation Uf in W/m²K bis: 3,6
Schalldämmung Rw,p in dB von: 35,0
Schalldämmung Rw,p in dB bis: 43,0
Einbruchdämmung RC von: RC1
Einbruchdämmung RC bis: RC3
Pulver: all Variations
Eloxal: all Variations
Nasslack: all Variations
Edelstahllook: all Variations
Luftdichtheit: 2
Schlagregendichtheit: 5a
Widerstand gegen Windlast: C3
Stoßfestigkeit: 1
Dauerfunktion: 7
Bedienungskräfte: 2
mechan. Festigkeit: 3
