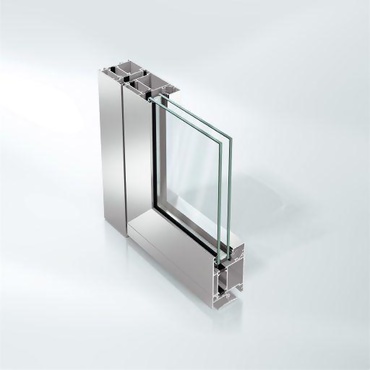

Schüco ADS 65 HD

  • Particularly robust and long-lasting
  • Numerous variants: 1 / 2 leaf, inward and outward opening, anti-panic doors
  • Suitable for use in high-traffic entrances and exits
  • Burglary protection rating up to class RC3
  • Comfortable clearance heights up to 3000 mm
  • Flat threshold solutions for barrier-free construction and adjustable foot points possible
  • Maximum leaf weight: 200 kg
  • Door leaf can be built with leaf overlapping infill
  • Can be integrated into Schüco façade systems
  • Can be integrated into building automation

The Schüco Door ADS 65 HD is suitable for economical entrance solutions in conjunction with excellent thermal insulation.

The Schüco aluminum door systems offer the highest standard of performance characteristics and flexibility. ​

  • Automatic door sealing
  • Barrier-free access solutions
  • Attachment hinges, barrel hinges and concealed hinges can be used
  • Door hinges with 1,000,000 cycles on endurance tested in accordance with EN 12400
  • Panic fittings
  • Escape door security

Double-leaf full panic door in RC2 with automatic lock Schüco InterLock (multi point locking system, optional A-opener)

Particularly in public buildings, Schüco door systems offer stability with high frequency of utilization and large opening widths.

Insbesondere in öffentlichen Bauten bieten die Schüco Türanlagen Stabilität bei hoher Frequentierung und großen Öffnungsweiten.

System features

ProduktDoors
WerkstoffAlumínium
EnergieThermally insulated (Uf ≤ 2,0)
ProduktTypFront door inside
Front door outside
Panic front door inside
Object door openout
Supply air
SicherheitsmerkmaleBurglar resistant RC2
Burglar resistant RC3
Emergency door suitable
Supply air elements/slipstream
Outbreak safety
FunktionMotorisable
Controllable
Comfort control
Radio system
Raised sound insulation
Easy-access
Emergency Exit Control
Emergency Exit Lock
Panic function
Self-closing function
Door-opening function (Swing door drive)
Schüco Door Control System DCS
Access control
Schüco Fingerprint
Schüco Code Keyboard
Schüco Card-reader
Schüco E-opener
Schüco A-opener
Schüco InterLock
Schüco SafeMatic
Gestaltung/DesignStandard
Multi Countour
OberflächeAlu crude (refinementable)
Schallschutzincreased sound insulation 38 - 45 dB
increased sound insulation more than 45 dB
Key figuresThermal insulation Uf in W/m²K von: 2,2
Thermal insulation Uf in W/m²K bis: 3,8
Schalldämmung Rw,p in dB von: 35,0
Schalldämmung Rw,p in dB bis: 43,0
Einbruchdämmung RC von: RC1
Einbruchdämmung RC bis: RC3
Pulver: all Variations
Eloxal: all Variations
Nasslack: all Variations
Edelstahllook: all Variations
Luftdichtheit: 2
Schlagregendichtheit: 5a
Widerstand gegen Windlast: C3
Stoßfestigkeit: 1
Differenzklimaverhalten: 3d/3e
Bedienungskräfte: 1
mechan. Festigkeit: 3
