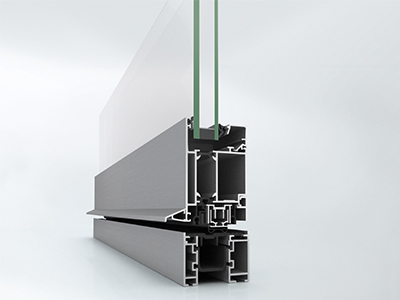

Schüco ADS 65 HD Gen2

Schüco ADS 65 HD (Heavy Duty) Generation 2 optimised for residential and property business
Single and double-leaf, inward and outward opening with zero threshold or standard threshold
Ud-values to 1.3 W/(m2K) with Uf = 2.1 W/(m2K) and triple glazing
Special centre seal in new centre sealing concept
Accessible zero threshold for convenient access
Max. Leaf dimensions W x H = 1,400 x 3,000 mm
Can be integrated within Schüco Facade Systems
Door leaf with fill covering door
Narrow view width from 147 mm
Compatible with Schüco AWS 65
Burglar-resistance up to RC3 level
Leaf weight up to 200 kg
Market launch in 2 phases

Schüco door ADS 65 HD Generation 2 for large-format doors with high durability, good sealing and thermal insulation

Schüco ADS 65 HD Gen2 is a thermally-insulated and robust aluminium door. Schüco ADS 65 HD permits high loads and is suitable for commercial and residential areas. The system was developed for projects where high-performance single doors are required.

Schüco ADS 65 HD has a strong design and allows large opening widths. The system can be integrate within building automation systems, for example with integral Schüco DCS access control.

The new series is an extension of the Schüco ADS 65 HD with the following additions:

- New central seal system for tougher sealing and thermal insulation requirements

- Zero threshold for accessible building access and convenience for inward- and outward-opening doors

Special feature

Design versions:

- 1-leaf outward-opening with zero threshold and inward-opening with stop and zero threshold (phase 1 from autumn 2021)

- 2-leaf, panic version with zero threshold or standard threshold inward/outward opening, Schüco AWS connection (phase 2 from spring 2022)

Same tools for Schüco ADS 65 HD Gen2 as for Schüco ADS 65 HD.

System features

System	Doors
Material	Alumínium
Energy	Thermally insulated (Uf ≤ 2,0)
Types	Front door inside Front door outside Panic front door inside Object door openout Supply air
Security	Burglar resistant RC2 Burglar resistant RC3 Emergency door suitable Supply air elements/slipstream Outbreak safety
Features	Motorisable Controllable Comfort control Radio system Raised sound insulation Easy-access Emergency Exit Control Emergency Exit Lock Panic function Self-closing function Door-opening function (Swing door drive) Schüco Door Control System DCS Access control Schüco Fingerprint Schüco Code Keyboard Schüco Card-reader Schüco E-opener Schüco A-opener Schüco InterLock Schüco SafeMatic
Design	Standard
Surface	Alu crude (refinementable)
Sound insulation	increased sound insulation 38 - 45 dB increased sound insulation more than 45 dB
Key figures	Thermal insulation Uf in W/m²K: from 2,1 to 3,8 Burglar resistance RC: from RC1 to RC3 Standard face width in mm: 147 Construction depth in mm: 65 Powder: alle Varianten Eloxal: alle Varianten Wet coating: alle Varianten Stainless steel look: alle Varianten Airtightness: 4 Driving rain proofness: 7A Resistance against wind load: C2
