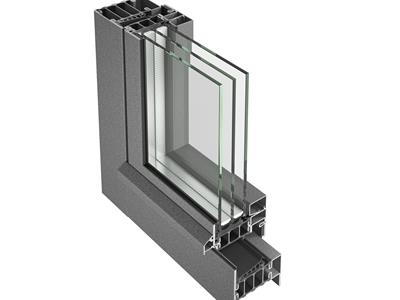

Jansen Janisol HI Window Systems

  • Profiles made of hot-dip galvanized steel
  • Suitable for powder-coating or stove enamel finish
  • Profile construction depth 80 mm frame / 90mm window casements
  • Single and double-vent windows, with/without side panels or skylight
  • Side-hung, tilt & turn, top-hung and double-vent windows
  • Concealed or overlying fittings
  • Integrated or mounted electric drives
  • Filling unit thicknesses up to 67 mm (window casements) or 57 mm (fixed glazing)
  • Leaf sizes up to 2.8 m height
  • Excellent static values, Narrow face widths
  • Leaf weights up to 180kg
  • CE marking in accordance with product standard EN 14351-1
  • Driving rain impermeability up to class 9A (600 Pa)
  • Air permeability up to class 4 (600 Pa)
  • Resistant against wind load up to class C4 (1600 Pa)
  • Airborne sound insulation up to Rw 46 db
  • Thermal transition coefficient Uw > 0.69 W/m2K for fixed glazing
  • Thermal transition coefficient Uw > 0.8 W/m2K for windows
  • Shear connection tested in accordance with EN 14024



Janisol HI combines aesthetics with technical sophistication. Elegant frame profiles emphasize stylish accents in the architecture, while the innovative technology ensures the highest thermal isolation. With triple insulation glazing, the windows can easily achieve excellent thermal transmittance values of Uw up to 0.69 W/m2K (for fixed glazing) and 0.8 W/m2K respectively (for windows). Thanks to high-tech insulators of glass fiber reinforced polyurethane, the window system achieves excellent static values and scores top values in system tests (air/water/wind).​



System features

ProduktWindows
Window door
Security systems
Ventilation systeme
WerkstoffSteel
EnergiePassiv house suitable (0,8 ≤ Uf ≤ 1,0)
ProduktTypTurn windows
Combined pivoting hopper window
Toplights
Fixed glazing
Double vent window
Supply air
SicherheitsmerkmaleBurglar resistant RC2
Burglar resistant RC3
Flue
FunktionMotorisable
Gestaltung/DesignStandard
OberflächeSteel galvanized (refinementable)
Schallschutzincreased sound insulation 38 - 45 dB
increased sound insulation more than 45 dB
Standard up to 38 dB
Key figuresThermal insulation Uf in W/m²K von: 0,9
Thermal insulation Uw in W/m²K von: 0,8
Schalldämmung Rw,p in dB bis: 46,0
Pulver: all Variations
Nasslack: all Variations
Luftdichtheit: 4
Schlagregendichtheit: 9A
Widerstand gegen Windlast: C4
