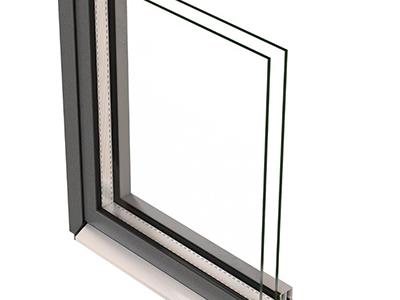

Jansen Janisol Arte 2.0 Doors

  • ​Thermally insulated steel system for doors and fixed glazings
  • Basic depth 60 mm, inside and outside opening
  • Narrow face widths: frame and vent from 45 mm, meeting stile assembly 60 mm.
  • Single and double-leaf doors, opening inwards and outwards
  • Door vent up to 1250 x 2.500 mm (w x h)
  • Vent weight up to 150 kg
  • Filling element thickness from 10 to 47 mm, glass installation by means of dry or wet glazing
  • System tests according to product standard EN 14351-1
  • Strength requirement according to EN 1192
  • Wide range of system-tested door fittings
  • Barrier-free threshold designs

Modern construction and renovation in style

​The proven Janisol Arte 2.0 window and glazing system has been extended to include a system-tested door construction with 60mm depth and is suitable for modern construction as well as stylish renovation. The second generation of the Janisol Arte system features steel, stainless steel and Corten steel profiles and a wider range of profiles. The integrated sealing groove simplifies and speeds up processing. In addition, a wide range of glazing beads is available in a variety of materials. With narrow profile face widths from 45mm, fine yet stable constructions with a high glass content and best thermal insulation can be realized.​



System features

SystemDoors
MaterialSteel
EnergyThermally insulated (Uf ≤ 2,0)
TypesFixed glazing
Front door inside
Front door outside
FeaturesRaised sound insulation
Easy-access
Self-closing function
DesignStandard
SurfaceSteel galvanized (refinementable)
Stainless steel polished
Other
Sound insulationincreased sound insulation 38 - 45 dB
increased sound insulation more than 45 dB
Standard up to 38 dB
Key figuresThermal insulation Uf in W/m²K from: 1,6
Sound insulation Rᵥᵥ,ₚ in dB to: 47
Construction depth in mm: 60
Powder: alle Varianten
Wet coating: alle Varianten
Weight in kg: 150
Airtightness: bis 4
Driving rain proofness: bis 8A
Resistance against wind load: bis C4
Shockproof: 4
Continuous operation: 7
Operation power: 3
Mechanic strength: 4
