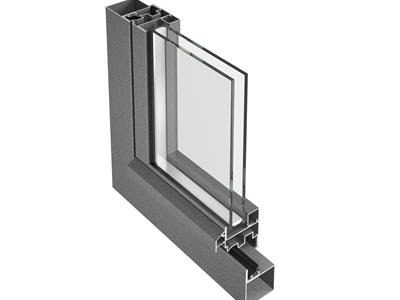

Jansen Economy 50 Window Systems

  • {{image.title}}

  • Profiles in steel polished blank or hot-dip galvanized steel
  • Suitable for powder-coating or stove enamel finish
  • Profile construction depths 50 mm frames / 58.5 mm window casements
  • Single and double-vent windows, with/without side panels or skylight
  • Side-hung, tilt & turn, bottom-hung and top-hung and double-vent windows
  • Special geometrical shapes (round arch, trapezoid windows etc.)
  • Concealed or overlying fittings
  • Integrated or mounted electric drives
  • Leaf weight up to 180 kg
  • CE marking in accordance with product standard EN 14351-1
  • Driving rain impermeability up to class E900
  • Air permeability up to class 4
  • Resistant against wind load up to class C4/B4
  • Burglary protection rating up to RC (WK) 3 in accordance with EN 1627
  • Bullet resistance FB4 S/NS



With its construction depth of just 50 mm, the Jansen-Economy 50 profile system is suitable for slim but elegant window constructions without sacrificing anything of thermal insulation. Tested system-oriented fittings are available for all standard types of opening.​



System features

SystemWindows
Window door
Security systems
Ventilation systeme
MaterialSteel
EnergyNot insulated ( Uf ≥ 2,0)
TypesTurn windows
Combined pivoting hopper window
Toplights
Fixed glazing
Double vent window
Supply air
SecurityBurglar resistant RC2
Burglar resistant RC3
Penetration checking
FeaturesMotorisable
DesignStandard
SurfaceSteel crude (refinementable)
Steel galvanized (refinementable)
Key figuresThermal insulation Uf in W/m²K from: 5,3
Burglar resistance RC: from RC2 to RC3
Construction depth in mm: 50,0
Powder: all Variations
Wet coating: all Variations
Weight in kg: 180,0
Airtightness: 4
Driving rain proofness: E900
Resistance against wind load: C4/B4
Flak protection class: FB4

​Blank grain 220/240 and grain 320/400

The basic materials are 1.4401 and also 1.4404, 1.4301 and 1.4307.

Further information is available in our order catalogues and from our JANSEN product management at 01 / 98130-478.
