Schüco FWS 50

  • ​​Mullion-transom façade with 50 mm face width
  • Uf values up to 1.5 W/m²K - (See also FWS 50.SI variant 0.7 W/m²K)
  • Use of all Schüco AWS window and Schüco ADS door constructions
  • Ideal: Schüco AWS 114.SI as top-hung or parallel opening window
  • Window solutions in standard design and as SHEV/NRWG elements
  • Burglar resistance up to RC 3
  • Integration of photovoltaics (BIPV) possible on request

Schüco FWS 50 – Mullion-transom façade for easy processing and high energy efficiency

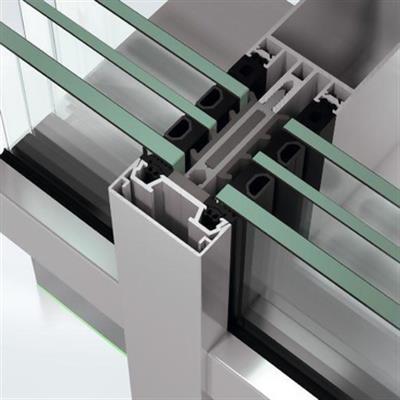

​Schüco FWS 50 is a mullion/transom construction with an internal and external face width of 50 mm.The façade system ensures high thermal insulation through new insulators. Schüco FWS 50 enables transparent façade constructions with large glazed areas. Mullion and transom profiles with construction depths from 50 to 250 mm are available. Schüco FWS 50 is suitable for façade areas in high-quality residential and commercial construction.​​

Special feature

This series is also available as Schüco FWS 50.SI with high thermal insulation (SI ... Super Insulation).
Special E mullions and E transoms are available for the concealed cable routing in the façade that we recommend.

System features

SystemFacades and Skylights
EnergyThermally insulated (1,3 ≤ Uf ≤ 2,0)
TypesTransom and mullion
SecurityBurglar resistant RC2
Burglar resistant RC3
FeaturesFall protection
SurfaceAlu crude (refinementable)
Sound insulationincreased sound insulation 38 - 45 dB
increased sound insulation more than 45 dB
Standard up to 38 dB
Key figuresThermal insulation Uf in W/m²K: from 1,5 to 2,5
Sound insulation Rᵥᵥ,ₚ in dB: from 37 to 48
Burglar resistance RC: from RC2 to RC3
Standard face width in mm: 50
Powder: all Variations
Eloxal: all Variations
Wet coating: all Variations
Stainless steel look: all Variations
Airtightness: AE
Driving rain proofness: E 120
Shockproof: I5/E5
