Schüco DriveTec

  • {{image.title}}
  • ​Motorized surface-mounted drive technology for almost all Schüco window solutions
  • All drives are tested with fittings and profile systems = completely tested system
  • Opening types: Tilt / Turn / Skylight
  • Energy-saving functions: Gap ventilation, timed ventilation and night cooling
  • Vent weight up to 200 kg and up to 60° opening angle
  • Control via Schüco BSC control units or via pole application (BSC ... BuildingSkinControl)
  • Quiet motor means low noise
  • Simple profile machining using special drilling templates or via SchüCal MCO
  • Simple assembly due to optimized assembly steps
  • Simple commissioning and adjustment of the drives

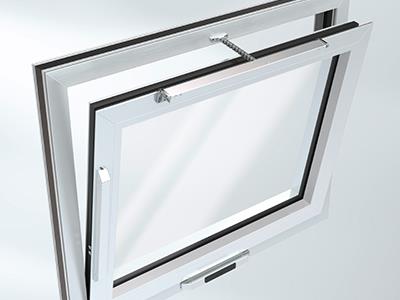

Schüco DriveTec - Natural window ventilation - completely automatic

Schüco DriveTec System is an innovative building automation solution for both commercial and residential buildings.
The drives are equipped with powerful, vibration-free motors with low noise emission and forces of up to 1,500 N.
Schüco DriveTec drives are suitable for side-hung (turn), bottom-hung (tilt) and roof windows with a vent weight of up to 200 kg, and opening widths of up to 800 mm (roof windows: 1000 mm) and provide high user comfort during daily ventilation.

Special features

Schüco DriveTec is only suitable for use in dry rooms. Relative humidity 5% - 93% non-condensing.
In case of rain or wind force 6 (14m/s - 49km/h - 120Pa) and above, the windows must be closed.
The use of a rain detector (263053) or a wind and rain detector (267732) is therefore strongly recommended.

System features

SystemWindows
Building automation
Fittings and equipment
MaterialAlumínium
FeaturesMotorisable
Comfort control
ControlElectric switchable

​Please choose the respective current firmware / software versions (see "Current") according to your product.

We also make a point of listing the historical versions (see "Expired") in this directory - if available.

1) Schüco DriveTec Configurator

   Current

     Schüco Drivetec Configurator 1.0.1 Stand 2021-08-20.zip

Schüco DriveTec Configurator is a program with which the surface-mounted drives from the Schüco DriveTec series can be configured in stand-alone mode. Schüco DriveTec Configurator supports the following drives:

  • Chain drives D4, D6 and D15
  • Locking drives VA
  • Rectractable arm drive FA
