Schüco AWS tilt and turn leaves

  • Tilting leaves and turning leaves for large sizes (panoramic formats)
  • 4 installation depths for thermal insulation from standard to Passivhaus level

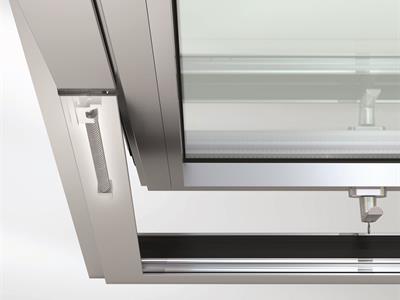

  • Concealed rolling element bearing with spring mechanism: Leaf weights up to 200 kg
  • Turning leaves (vertical windows) can be split asymmetrically
  • Aesthetically pleasing handle design
  • Lockable handle with approval for burglar resistance to RC 3
  • 180° cleaning position using the window handle
  • Opening limiter to limit the opening

Schüco AWS tilt and turn leaves with a special focus on appearance and user comfort ​

Schüco AWS turning leaves are ideally suited to room ventilation due to the type of opening. Schüco turning leaves allow vertical ventilation windows, that only come halfway into the room. Two exciting new developments promote the use of this window: The system was developed as a central seal system and therefore unites especially high sealing and thermal insulation. And concealed rolling element bearings were developed, which do their job without being seen and are fitted with load-supporting spring technology in addition. This allows heavy leaf weights up to 200 kg The handle system can be locked and can be uncoupled for the 180° cleaning position.

Special feature

The locking technology of the Schüco AWS tilt and turn leaf can be specified up to burglar-resistance RC 3.
Depending on the thermal insulation level, four installation depths are available: 60 mm, 70 mm, 75 mm and 90 mm.​​

System features

ProduktWindows
Window door
Ventilation systeme
ProduktTypPivot window
Vertical pivot vent
Supply air
SicherheitsmerkmaleBurglar resistant RC2
Burglar resistant RC3
Supply air elements/slipstream
Outbreak safety
FunktionSchüco TipTronic
Motorisable
Schüco WindowControlSystem WCS
Controllable
Comfort control
Radio system
Decentralized ventilation
SteuerungManuell switchable
Electric switchable
VOC control
CO2 control
Wet control
Wind control
Approximation control
Switch rail control
Magnetic switch control
Gestaltung/DesignStandard
OberflächeAlu crude (refinementable)
Schallschutzincreased sound insulation 38 - 45 dB
increased sound insulation more than 45 dB
Standard up to 38 dB
