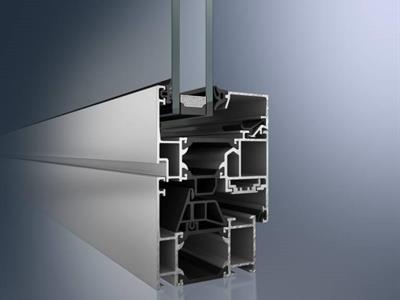

Schüco AWS 65

Good thermal insulation: Uf value of 2.1 W/(m²K) in face width of 117mm
Basic window system for standard window applications
Frame construction depth of 65mm
Can be built as tilt & turn, double-vent window, French window and many other variants
Wide range of profiles and design variants (e.g. Schüco AWS 65 RL, Block System)
Optionally, can be built also as flush or outward opening leaves
Compatible with Schüco ADS 65 door systems

Basic series with an extensive range – with a variety of designing possibilities

The Schüco AWS 65 series is a modern system in terms of performance.

Energy requirements are well met with a comprehensive range of profiles and well-thought-out design details. The series is suitable for inward and outward opening windows. With construction depth of 65mm, different variants are available for many solutions with specific design requirements.

Special feature

Schüco AWS 65 is compatible with the Schüco ADS 65 door series.

System features

System	Windows Window door Ventilation systeme
Material	Alumínium
Energy	Thermally insulated (1,3 ≤ Uf ≤ 2,0)
Types	Turn windows Combined pivoting hopper window Toplights Fixed glazing Double vent window PASK-window door Pivot window Vertical pivot vent Renovation window Supply air
Security	Burglar resistant RC2 Burglar resistant RC3 Protection class SK1 Protection class SK2 Protection class SK3 Protection class SK4 Flue Supply air elements/slipstream Outbreak safety
Features	Schüco TipTronic Motorisable Schüco WindowControlSystem WCS Controllable Comfort control Radio system Decentralized ventilation Raised sound insulation Fall protection Easy-access
Control	Manuell switchable Electric switchable VOC control CO2 control Wet control Wind control Approximation control Switch rail control Magnetic switch control
Design	Standard Multi Countour
Surface	Alu crude (refinementable)
Sound insulation	increased sound insulation 38 - 45 dB increased sound insulation more than 45 dB Standard up to 38 dB
Key figures	Thermal insulation Uf in W/m²K: from 1,9 to 2,5 Thermal insulation Uw in W/m²K: from 1,1 to 1,8 Sound insulation Rᵥᵥ,ₚ in dB: from 35,0 to 47,0 Burglar resistance RC: from RC1 to RC3 Standard face width in mm: 107,0 Construction depth in mm: 65,0 Powder: all Variations Eloxal: all Variations Wet coating: all Variations Stainless steel look: all Variations Airtightness: 4 Driving rain proofness: 1200 Resistance against wind load: C5/B6 Shockproof: 5 Continuous operation: 3 Corrosion protection class: 4 Operation power: 1 Mechanic strength: 4

Can the Schüco AWS 65 series still be used in Austria today?

Profiles of the Schüco AWS 65 series have thermal insulation in the range of Uf = 1.9 ... 2.0 W/m²K. This is a good value for an insulated aluminium construction. The current requirement for window construction according to the applicable Austrian OIB regulations, as of 2015, states that Uw = 1.4 W/m² K for residential buildings and Uw = 1.7 W/m² K for office buildings. This is, for example, to meet the Schüco AWS 70.HI or AWS 75.SI+. (Source: OIB RL6 10/2011)

Kann die Serie Schüco AWS 65 heute in Österreich noch eingesetzt werden?

Profile der Serie Schüco AWS 65 haben eine Wärmedämmung im Bereich U_f= 1,9 ... 2,0 W/m²K. Dies ist ein guter Wert für eine isolierte Aluminiumkonstruktion. - Die aktuelle Anforderung an Fensterkonstruktionen nach derzeit gültigen österreichischen OIB Regelungen liegt derzeit, Stand 2015, bei U_w= 1,4 W/m²K für Wohnbau und U_w= 1,7 W/m²K für Bürobau. Dies ist z.B. mit der Serie Schüco AWS 70.HI oder Schüco AWS 75.SI+ zu erfüllen. (Quelle: OIB RL6 10.2011)
