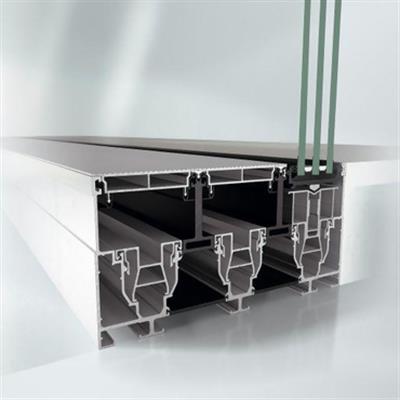

Schüco ASS 77 PD.HI

  • ​Panorama design with excellent thermal insulation from Uw = 1.1 W/(m²K)
  • Sliding system with maximum transparency and the greatest possible incidence of light
  • Total width up to 19m with vent dimensions W x H up to a maximum of 3.2m x 3.5m
  • Face width from 37 mm in the central section
  • Vent weights up to 500 kg
  • Concealed motors offer excellent operating comfort
  • Fast, noiseless movement via control panel or push-button
  • Intelligent sensor technology for maximum comfort
  • Burglar resistance up to class RC 2 according to ENV 1627
  • Drive and locking technology with easy maintenance and care​

Frameless design for panorama sliding glass applications

We also offer 90° corner solutions and, for smaller sliding ​doors, an optional manual fitting variant. Optional 2- or 3-track outer​​ frames offer a wide design spectrum for light-flooded, transparent architecture with convenient drive and simple and safe control.
With the highly thermally insulated Schüco sliding system ASS 77 PD.HI (High Insulation), different opening types are available for many variants in the Schüco Panorama Design.



System features

SystemSliding systems
MaterialAlumínium
EnergyThermally insulated (Uf ≤ 2,0)
TypesPanorama sliding systems
Supply air
SecurityBurglar resistant RC2
Protection class SK1
Protection class SK2
Protection class SK3
Protection class SK4
FeaturesMotorisable
Schüco WindowControlSystem WCS
Controllable
Comfort control
Radio system
Decentralized ventilation
Easy-access
Schüco Fingerprint
Schüco Code Keyboard
Schüco Card-reader
ControlManuell switchable
Electric switchable
VOC control
CO2 control
Wet control
Wind control
Switch rail control
DesignStandard
SurfaceAlu crude (refinementable)
Sound insulationincreased sound insulation more than 45 dB
Key figuresThermal insulation Uf in W/m²K: from 3,3 to 2,4
Thermal insulation Ud in W/m2K to: 1,1
Burglar resistance RC: from RC1 to RC2
Standard face width in mm: 150
Construction depth in mm: 77
Powder: all Variations
Eloxal: all Variations
Wet coating: all Variations
Stainless steel look: all Variations
Airtightness: 3
Driving rain proofness: 750
Resistance against wind load: C2/B2
Operation power: 2

​Yes. For RC2, other locking components, product no. 276455, and in addition the adaptor pieces, product no. 276328, are used. The glazing has to be glued (P4A). See K drawing K1010322 for RC 2 locking of Schüco ASS 77 PD.HI.

​Please choose the respective current firmware / software versions (see "Current") according to your product.

We also make a point of listing the historical versions (see "Expired") in this directory - if available.

1) Schüco ASS 77 PD

   Current

       Schueco ASS 77 PD ServiceTool V0.28 2019-02-18.zip

       Wichtige Information Stand 2019-02-18.txt

   Expired

      Schueco ASS 77 PD Service Tool V0.27 2018-01-24.zip

      Schueco ASS 77 PD Service Tool V0.26 2016-02-19.zip

      Schueco ASS 77 PD Service Tool V0.24 2015-06-25.zip

2) Main control unit

   Current

      Schueco ASS 77 PD - V35 2016-03-03.zip

3) Slide drive

   Current

      Schueco ASS 77 PD Service V23 2014-10-17.zip

Profiles
Anodisation according to specifications for coastal areas

Fitting
All fitting parts are to be treated in accordance with guidelines for coastal areas

Castors
Schüco Standard Castors are only partially suitable for coastal areas - 240 hours are achieved in the salt spray test. Increased maintenance is to be expected.

NSK corrosion-resistant bearings are available by special order - these last 480 hours. As of 2018-03, an endurance test will soon be carried out with them. However, here too, the castors would have to be swapped from time to time - half as often as standard rollers.

Bild Ergebnisse Salzsprühnebeltest 2018-03.pdf

As of June 2018, DowCorning's edge sealant materials are:


DowCorning 3362 remains on the market and is the standard secondary sealant.
DowCorning 3363 replaces DC 3362 HD, where DC 3363 has a greater hardness than DC 3362.
According to DowCorning both products have an ETAG 002 approval.

Schüco confirms that the products DC 3362 and DC 3363 are compatible with the Schüco products 288180 and 288181.
The information in the Schüco catalogues will be adapted in the coming weeks

General statements about the primary sealant are hardly possible because there are different qualities.
According to the manufacturer, the adhesive 288180 is compatible with high-quality butyl-based primary sealants (PIB).
Our customers must continue to ask the respective manufacturer of insulating glass about this.

Information
The brand names of DowCorning have changed.
For example, Dow Corning 3362 is now called DOWSIL 3362.

1) Requirements for the purchase of Schüco Panorama sliding systems

  • Please also see the enclosed brochure, the prospective customer must have certification training and a valid certificate.
  • In order to approve the use of the series, a workshop size and workshop equipment are required that are compatible with the series.
  • As soon as the prospective customer holds the licence certificate, the fundamentally present delivery block will be lifted in our ERP system.
  • Schüco and AluKönigStahl have adopted this approach in order to favour well-trained and certified processors and to ensure that end customers receive functioning equipment.
    The occurrence of complaints about Panorama sliding systems is thereby reduced to a minimum.

2) Registration of prospective customers at www.alukoenigstahl.com
After registration, prospective customers can access the relevant series documents in AKS TechDoc and also the certification documents in AKS e-Academy. AluKönigStahl assigns the access authorisation after consultation with the responsible sales field staff and evaluation of the workshop equipment.

3) Access to AKS e-Academy for certification training
The participants will be given access to the training documents of the AKS e-Academy before the certification training.
Also retrievable are preparatory tests for the final certification test in several languages.

4) Certification training and personalised certification test
AluKönigStahl offers certification training at regular intervals. Certificates are issued on a personal basis.
At least one person in a company must be certified, and preferably three employees respectively for assembly, production and planning.

The final certification test can be done on paper or by e-Questionnaire.
Registration on our homepage and taking a laptop along for the training are (also) recommended.

The result of the test must be > 50% (for one point for each question, all the respective possible answers must be correct).

5) Approval for delivery
The Schüco and AluKönigStahl ERP system provides a fundamental block of relevant articles from the PD systems.
With positive certification, this block will be lifted. The names of the certified persons for each company are held in evidence at AluKönigStahl. Recertification is required after 3 years.
