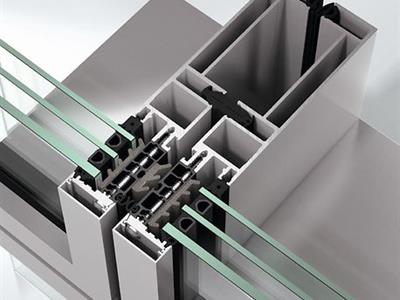

Schüco AF UDC 80

  • Framed look element facade
  • Diagonal transoms, offset fields, front-hanging plates and sun protection integrated
  • 5 different profile installation depths with 80 mm view width
  • optional optically reduced view 65 mm
  • Uf-values up to 0.81 W/m2K - Passivhaus standard
  • Glass thicknesses of 22 to 70 mm
  • Element dimensions up to 3,000 x 4,000 mm
  • Element weight up to 1,000 kg
  • 10 to 20 mm butt joints to accept different ceiling deflections
  • Combination with Schüco AF UDC 80 CV as top-hung or parallel-opening windows
  • Combination with integrated and wind-stable textile sunscreen Schüco AB ZDS
  • Profile-integrated parapet guard
  • Integration of Schüco AWS 114 insert elements
  • Integration of additional window and door platforms (Schüco AWS and Schüco AD UP)

Schüco AF UDC 80 (Unitized Dynamic Construction) - new design option to implement custom properties using modular construction

Schüco AF UDC 80 was developed as an element facade which covers a wide range of different market requirements.
This also relates to building-specific adaptations and special visual appearances. This is possible to implement using tested assemblies.
The manufacturing time of the Schüco AF UDC 80 is reduced compared to its predecessor Schüco USC 65.
Our particular focus was to increase the architectural flexibility in terms of
- larger elements and element weights
- different element geometries as well as
- the use of alternative materials in opaque areas (e.g. natural stone)
Processing benefits:
- High degree of pre-manufacture in the workshop
- weather-independent manufacturing with high processing quality and predictable costs
- few spare parts and short installation times
- rational installation even with limited space on site
- system brackets which are adjustable in three axes for element weights up to 1,000 kg (exact positioning of the element facades)

Special feature

Other products:
Schüco AF UDC 80 CV (Concealed Vent) fully covered horizontal leaf
Schüco AF UDC 80 SG (Structural Glazing)

System features

ProduktFacades and Skylights
WerkstoffAlumínium
EnergiePassiv house suitable (0,8 ≤ Uf ≤ 1,0)
Highly thermally insulated (1,0 ≤ Uf ≤ 1,3)
ProduktTypElement-facade
PV integrated façade
FunktionFall protection
Gestaltung/DesignStandard
OberflächeAlu crude (refinementable)
Key figuresPulver: all variations
Eloxal: all variations
Nasslack: all variations
Edelstahllook: all variations
Luftdichtheit: AE 1.200 PA
Schlagregendichtheit: AE 1.650 PA
