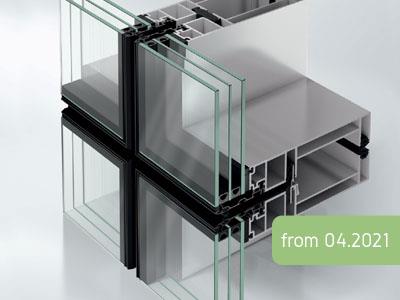

Schüco AF UDC 80 SG

  • Element facades in full-glass look
  • 5 different profile installation depths with 80 mm view width
  • High thermal insulation with Uf values up to 1.3 W/m2K
  • Application of glass thicknesses of 22 to 50 mm
  • Elements with dimensions up to 3,000 x 4,000 mm
  • Element weight up to 1,000 kg
  • 10 to 20 mm butt joints to accept different ceiling deflections
  • Integration of Schüco AWS 114 SG insert elements

Schüco AF UDC 80 SG (Unitized Dynamic Construction) – Full-glass look for implementation of custom properties in modular design

The Schüco AF UDC 80 SG facade is part of the Schüco AF UDC 80 facade system platform.
Schüco AF UDC 80 SG impresses from the outside with the flat look of a full-glass facade, inside it provides the design of an element facade with narrow view widths of just 80 mm.
Using the window series Schüco AWS 114 SG makes large-format insert elements possible as top-hung or parallel-opening windows.
Schüco AF UDC 80 SG is developed as an element facade, which covers the majority of the requirements in the market and allows uniform building-specific adaptations using tested assemblies.
Both are implemented by optimising the technical performance characteristics and a wide spectrum of applications.
The manufacturing time of the Schüco AF UDC 80 SG is reduced compared with its predecessor series Schüco UCC 65 SG.
The priority is also on the increase of architectural flexibility in terms of larger elements, element weights, and element geometries.
Processing benefits:
- High degree of pre-manufacture in the workshop
- weather-independent manufacturing with high processing quality and predictable costs
- few spare parts and short installation times
- rational installation even with limited space on site
- system brackets which are adjustable in three axes for element weights up to 1,000 kg (exact positioning of the element facades)

Special feature

Other products:
Schüco AF UDC 80
Schüco AF UDC 80 CV (Concealed Vent)

System features

ProduktFacades and Skylights
WerkstoffAlumínium
EnergieHighly thermally insulated (1,0 ≤ Uf ≤ 1,3)
Thermally insulated (Uf ≤ 2,0)
ProduktTypElement-facade/Glittering glass façade
PV integrated façade
FunktionFall protection
Gestaltung/DesignStandard
OberflächeAlu crude (refinementable)
Key figuresPulver: all variations
Eloxal: all variations
Nasslack: all variations
Edelstahllook: all variations
