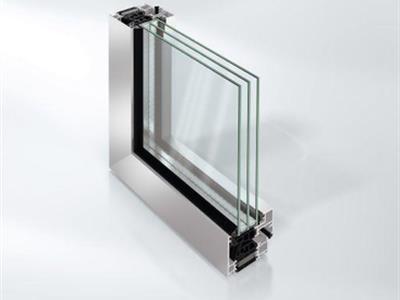

Schüco AWS 75 BS.SI+

  • Uf values from 0.92 W/(m²K) for highly thermally insulated aluminum windows
  • Uf value = 1.2 W/(m²K) with face width of 117 mm with U-value = 0.90 W/(m²K) at Ug-value = 0.6 W/(m²K)
  • Special model gasket in foam rubber design
  • Attractive Alternative: Block windows Schüco AWS 75 BS.SI+ with concealed leaf
  • Attractive Alternative: Schüco AWS 75 WF.SI+ in façade look
  • Leaf optionally in standard or RL-optics (Residential Line)
  • Motorized fitting solutions with Schüco TipTronic possible
  • Burglary protection rating up to RC 3
  • Optionally also outward opening

Flexible, high thermally insulated standard window series Schüco SimplySmart technology

The Schüco Window AWS system provides with its construction depth of 75 mm highly thermal insulated SI versions (Super Insulation) with convincing functional, design and processing properties. The standard series Schüco Window AWS 75.SI+ has excellent thermal insulation. With Schüco SimplySmart technology, a surrounding middle gasket and new glazing rebate insulation ensure efficient and secure processing. In combination with the new generation of mechanical fittings Schüco AvanTec SimplySmart a top class window is created.

​As a block window with concealed leaf frame, Schüco Window AWS 75 BS.SI+ meets high architectural demands by a sleek design with maximum transparency.

Schüco AWS 75 WF.SI+ is based on the Schüco block window technology and is specifically designed for economical construction of ribbon windows with storey-high glazing in mullion-transom optics.


System features

Window door
Ventilation systeme
EnergieHighly thermally insulated (1,0 ≤ Uf ≤ 1,3)
ProduktTypTurn windows
Combined pivoting hopper window
Fixed glazing
Double vent window
Renovation window
Supply air
SicherheitsmerkmaleBurglar resistant RC2
Burglar resistant RC3
Protection class SK1
Protection class SK2
Protection class SK3
Protection class SK4
Supply air elements/slipstream
FunktionSchüco TipTronic
Schüco WindowControlSystem WCS
Comfort control
Radio system
Decentralized ventilation
Raised sound insulation
Fall protection
SteuerungManuell switchable
Electric switchable
VOC control
CO2 control
Wet control
Wind control
Approximation control
Switch rail control
Magnetic switch control
Block system
Multi Countour
OberflächeAlu crude (refinementable)
Schallschutzincreased sound insulation 38 - 45 dB
increased sound insulation more than 45 dB
Standard up to 38 dB
Key figuresThermal insulation Uf in W/m²K von: 1,3
Thermal insulation Uf in W/m²K bis: 1,6
Schalldämmung Rw,p in dB von: 37,0
Schalldämmung Rw,p in dB bis: 48,0
Pulver: all Variations
Eloxal: all Variations
Nasslack: all Variations
Edelstahllook: all Variations
Luftdichtheit: 4
Schlagregendichtheit: 900
Widerstand gegen Windlast: C5/B5
Stoßfestigkeit: 5
Dauerfunktion: 2
Korrosionsschutzklasse: 4
Bedienungskräfte: 2
mechan. Festigkeit: 4

We recommend the following tools
For rolling in the stop seal:  Schüco sealing roller Item no. 293565
For rolling in the glazing seal Schüco Flat ribbon-rollup Item no. 282772*

*) Tool made from Schüco TipTronic SimplySmart
